Industrial and Road Lighting

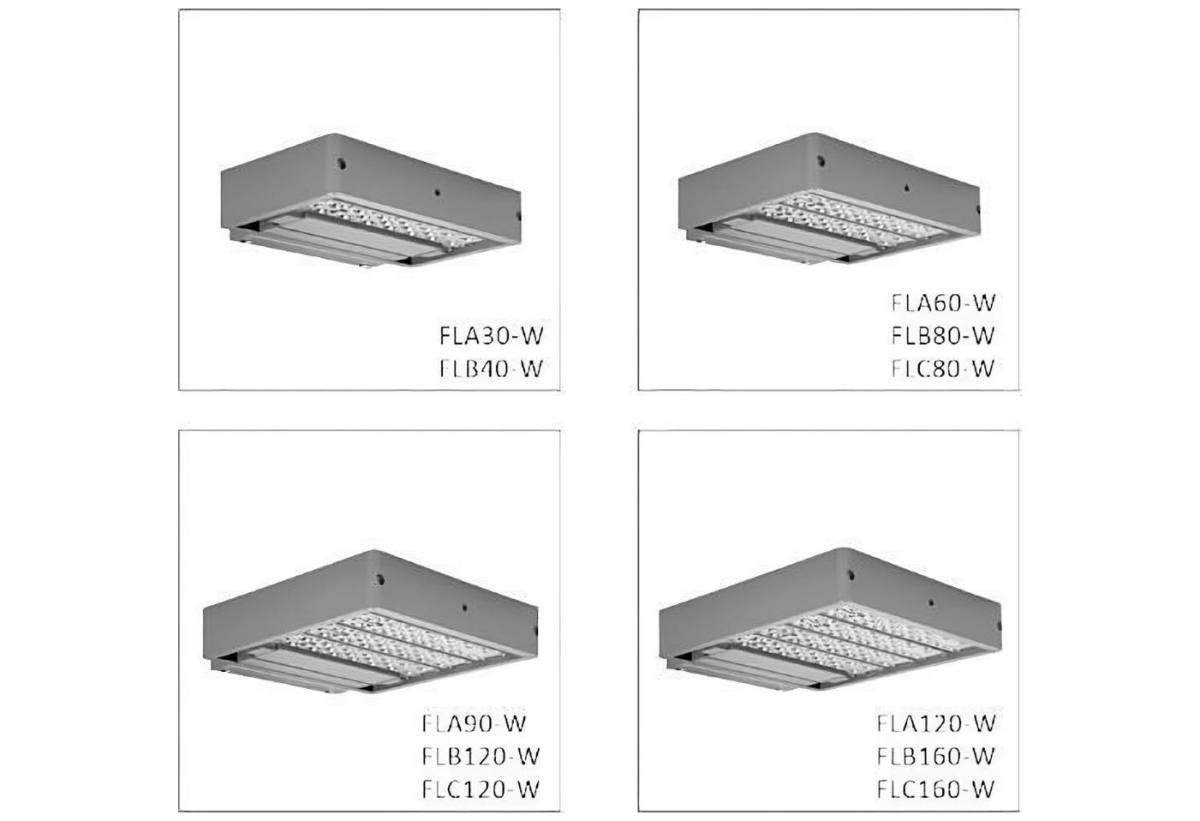

QLED WALL 30.160

Aluminium-alloy housing with a corrosion-resistant polyester powder coating, plus a grade 304 stainless-steel cover and lens-guard screws.
Philips or Mean Well driver; Cree XPG, Lumileds Luxeon or OSRAM LEDs.
Rear-mounted aluminium junction box with MOLEX quick connectors for straightforward wiring. Optional motion sensor and photoelectric control unit (PECU).
Multiple smart lighting-control options.
Five-year warranty.

We'll send you the full specifications, certifications and dimensions.

Technical features

18 specs

Power: 30–160 W
Input voltage: 120–277 V AC / 220–240 V AC / 347–480 V AC
Power factor: >0.95
Total harmonic distortion: <20% (120–277 V AC) / <10% (220–240 V AC)
L85 lifetime: >60,000 h
Operating temperature: -40 °C to +50 °C
Typical luminous efficacy: 120 lm/W / 160 lm/W
Colour temperature (ANSI CCT): 3000 K / 4000 K / 5000 K / 5700 K
Minimum CRI: 70* / 80 / 85
IP rating: IP65
Surge protection: Optional
Standards and approvals: UL / CUL / DLC / LM79 / ENEC / CB / ErP / PSE / IK08
DALI control: Optional
1–10 V dimming: Optional
Photocell: Not available
Smart control: Not available
Optical distribution (IESNA): Type I, Type II, Type III, Type IV, Type V
Colour options: Grey / Black / Bronze / White
